Products

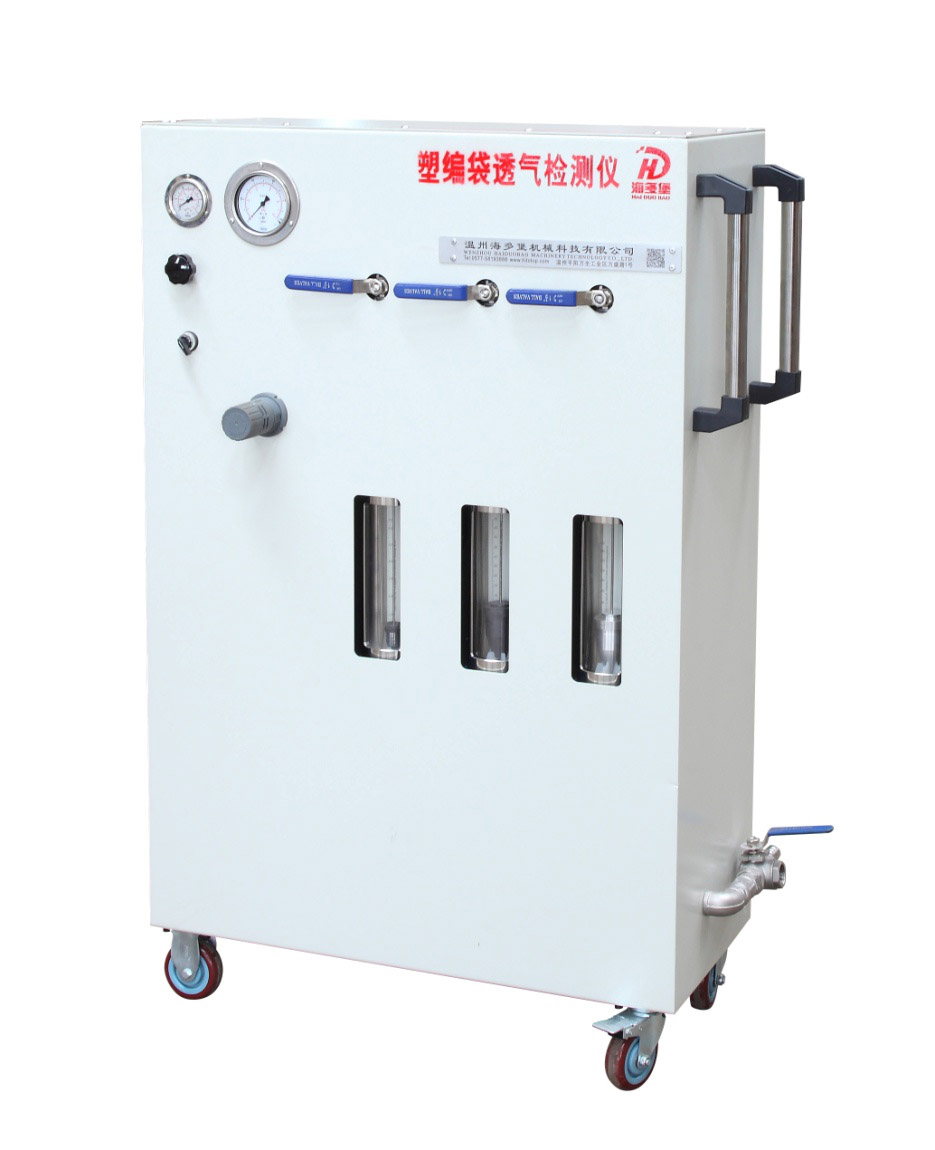

Valve pocket breather detector

First, use:
It is used to detect the air permeability of the micropore valve pocket for stable filling. (The universal reference standard air permeability is 120m3/h. Because the pressure of each manufacturer's filling machine is different and not adjustable, it can be adjusted according to the actual situation.)

Second, equipment performance parameters:

Pressure range  1～8000Pa（80 mbar）
Measurable air permeability  0.65～160 m3/h
Measurement error  ≤±2%

Intake air pressure

≤16 bar

Main gauge range

0～100 mbar

Secondary pressure gauge

0～1.0 bar

Air flow meter range 1

0.65～6.5 m3/h

Air flow meter range 2

5～50 m3/h

Air flow meter range 3

16～160 m3/h

Main air pressure valve quantitative adjustment

0.5～10 bar

Secondary pneumatic valve quantitative adjustment

0～0.5 bar

Intake hose length

3 m

Intake hose connector

DN25 internal thread

Valve mouth

Common size 3

Overall size

900×400×1450 mm


Third, the main configuration of the equipment:


Domestic accessories version

Imported parts version

Number of nozzles

Valve pocket: 5 sizes each

Bottom cement bag: 2 special sizes


Valve pocket: 5 sizes each

Bottom cement bag: 2 special sizes


Pressure gauge

Domestic (Guangzhou)

German brand

Air flow meter

Domestic brand (Changzhou)

German brand

Main air valve

Italian brand

Italian brand

Secondary air valve
Japanese brand
Japanese brand
#Description
(problem to be produced)
(normal shipment)

Tax-included price

Does not include shipping and installation

3.8萬

5.5萬
